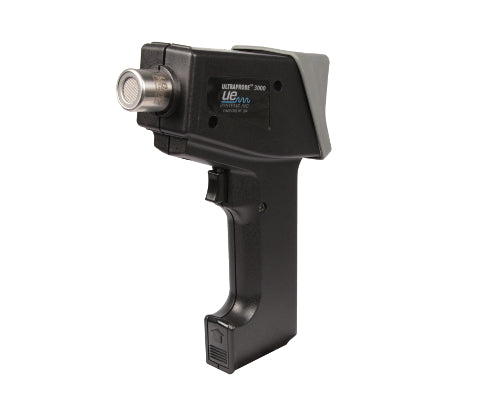

Ultraprobe 3000SL
Here’s a digital Ultraprobe® that’s versatile enough to cut energy waste and improve uptime while saving money, and improving the environment.
The Ultraprobe® 3000 is a digital ultrasonic inspection, information, storage, and retrieval system that comfortably fits in the palm of your hand.
Dial into convenience and savings with the Ultraprobe® 3000.
Experience the advantages of airborne/structure borne ultrasonic inspection with the Ultraprobe® 3000. This digital inspection system is fully equipped to detect energy waste, and locate mechanical and electrical problems, with many features that will help you inspect in the most challenging environments.
Features:
Wide, dynamic sensitivity range
Spin and Click” operations to customize
inspection modes, store and view data and adjust
instrument settings

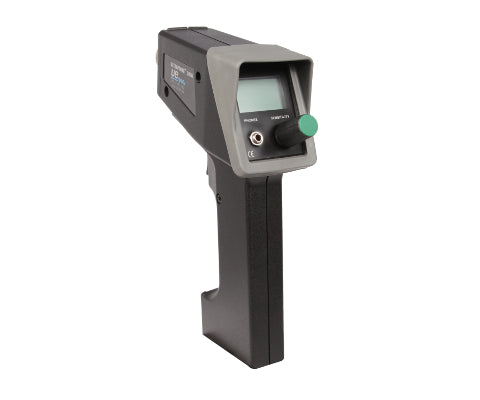

Easy-to-read display panel with calibrated decibel readout and a 16 segment bar graph. The display panel showcases sensitivity level, storage location number, and battery level.
Store, overwrite, or enter data in a new location
400 Memory locations hold all your test data
Scanning and stethoscope (Contact)
plug-in modules
Update system software online
Applications:
Compressed Air Leak Detection
Steam Trap Inspection
Valve Leak Detection
Pressure & Vacuum Leak Detection
Heat Exchanger, Boiler, Condenser Leaks
Tanks, Pipes, Leak Testing
Wind Noise/Water Leaks
Hatch Leak Integrity Bearing Testing
Gear/Gear Box Inspection
General Mechanical Inspection & Trouble Shooting
Electrical Inspection
Technical Specifications
| Construction: | Hand-held pistol type made with ABS plastic |
| Circuitry: | Solid state analog and SMD digital circuitry with temperature compensation |
| Frequency: | Frequency response: 35-45 kHz |
| Response Time: | <10 milliseconds |
| Display: | 128x64 Graphic LED with LED backlight |
| Memory: | 400 storage locations |
| Battery: | Li Polymer Rechargeable |
| Operating Temperature: | 0°C to 50°C (32°F to 122°F) |
| Output(s) | Calibrated heterodyned output Decibel (dB)frequency USB data output |
| Available Probes: | Scanning module and stethoscope (contact) module Long range module RAS MT |
| Headset: | Deluxe noise attenuating headphones. Over 23 dB of noise attenuation. Meets or exceeds specifications and OSHA standards |
| Indicators: | dB, battery status and 16 segment bar graph, sensitivity setting, record number |
| Threshold: | 1 x 10⁻² std: cc/sec to 1 x 10⁻³ std. cc/sec |
| Dimensions: | Complete kit in Zero Halliburton aluminum carrying case 38.1 x 55.9 x 11.43 cm (15” x 22” x 5”) |
| Weight: | Pistol Unit: 0.45 kg (1 lbs) Carrying Case: 4.99 kg (11 lbs) |
| Warranty: | 1 year standard 5 years with completed registration form |
