TSC Amigo ACFM System
Pine Item #54117

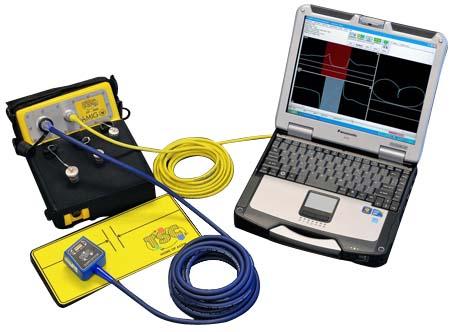

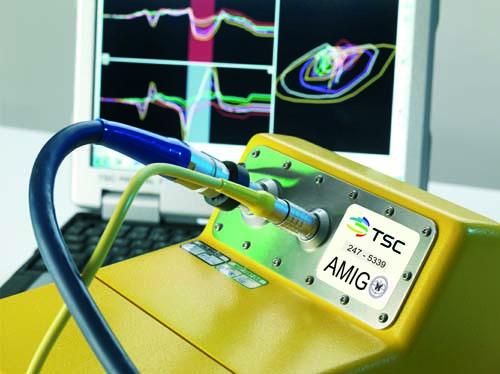

The Amigo represents a significant advance in ACFM topside inspection technology. The smaller, lighter package, has the added benefits of a longer battery life and support for simple array probes. The system allows for rapid scanning using hand held probes as well as at least 5 hours operation time on a fully charged battery. The Amigo is capable of inspection through thin metallic coatings or through non-conducting coatings several millimeters thick. The Windows based software allows for ease of use and compatibility within other Windows applications.
Features:

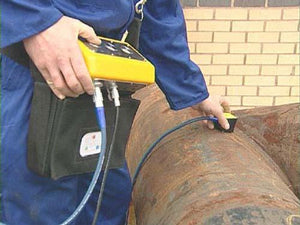

Rapid scanning using a hand-held probe.
Reliable crack detection and sizing (length and depth).
Dual frequency option: 5kHz
Rugged site unit IP54 rated.
Around 10 hour operation on one fully-charged battery pack and easy exchange of battery packs in the field.
Reduced cleaning requirements with no need to clean to bare metal.
Capable of inspection through thin metallic coatings or through non-conducting coatings up to 10mm thick.
Windows software for ease of operation and compatibility with other Windows applications.
Full data storage for back-up off-line view and audit purposes.

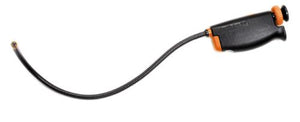

Access to a wide range of geometries using TSC's new range of active topside probes.
Buttons for RUN / STOP and MARKERS on instrument and larger probes to allow one-man operation in difficult access areas.
Intelligent probes to simplify operation.
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals & Data Sheets
Videos
| Probe Cable Length | 5m (16.4ft) standard up to 50m (164ft) by special request. |
| Serial Communications Cable Length | Up to 30 metres (98ft) |
| Operating Temperature | -20° to 40°C |
| Environment Protection | IP54 rated |
| Array Support | 16 channels plus position encoder |
| Dimensions | US: 8.1 x 11.5 x 4.9 in. Metric: 206 x 292 x 127mm |
