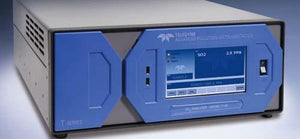

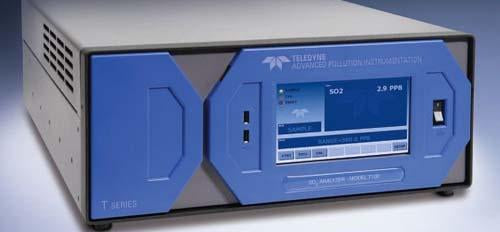

Teledyne Model T100
The Model T100 uses the proven UV fluorescence principle, coupled with a state of the art user interface to provide easy, accurate, and dependable measurements of low level SO2. Exceptional stability is achieved with the use of an optical shutter to compensate for PMT drift and a reference detector to correct for changes in UV lamp intensity. A hydrocarbon "˜kicker' and advanced optical design combine to prevent inaccuracies due to interferents. All T Series instruments offer an advanced color display, capacitive touch screen, intuitive user interface, flexible I/0, and built-in data acquisition capability. All instrument set up, control and access to stored data and diagnostic information is available through the front panel, or via RS232, Ethernet, or USB com ports either locally or by remote connection using the
included APIcom™ software.
Features:
Ranges: 0-50 ppb to 0-20 ppm, user selectable
Selectable ranges, with dual range capability
Large, vivid, and durable color graphics display with touch screen interface
Ethernet, RS-232, and (optional) USB com ports
Front panel USB connections for peripheral devices and firmware upgrades
8 analog inputs (optional)
Adaptive signal filtering optimizes response time
Temperature & pressure compensation
Internal zero & span check (optional)
Comprehensive internal data logging with programmable averaging periods
Ability to log virtually any operating parameter
Applications:
Ambient Air Monitoring
Roadside Air Monitoring
CEMS – Stack Air Monitoring
| Ranges | Min: 0 - 50 ppb full scale |
| Max: 0 - 20,000 ppb full scale (selectable, dual-range supported) | |
| Measurement Units | ppb, ppm, μg/m3, mg/m3 (selectable) |
| Zero Noise | < 0.2 ppb (RMS) |
| Span Noise | < 0.5% of reading (RMS) above 50 ppb |
| Lower Detectable Limit | < 0.4 ppb |
| Zero Drift | < 0.5 ppb/24 hours |
| Span Drift | < 0.5% of full scale/24 hours |
| Response Time | < 120 seconds to 95% |
| Linearity | 1% of full scale |
| Sample Flow Rate | 650 cc/min ±10% |
| Power Requirements | 100V-120V, 220V-240V, 50/60 Hz |
| Analog Output Ranges | 10V, 5V, 1V, 0.1V (selectable) |
| Recorder Offset | ±10% |
| Included I/O | 1 x Ethernet: 10/100Base-T |
| 2 x RS232 (300-115,200 baud) | |
| 2 x USB device ports | |
| 8 x opto-isolated digital outputs | |
| 6 x opto-isolated digital inputs | |
| 4 x analog outputs | |
| Optional I/O | 1 x USB com port |
| 1 x RS485 | |
| 4 x digital alarm outputs | |
| Multidrop RS232 | |
| 3 x 4 - 20mA current outputs | |
| Operating Temperature Range | 5 - 40ºC (with US EPA Approval) |
| Dimensions (HxWxD) | 7” x 17” x 23.5” (178 x 432 x 597 mm) |
| Weight | 35.7 lbs (16.2 kg) |
