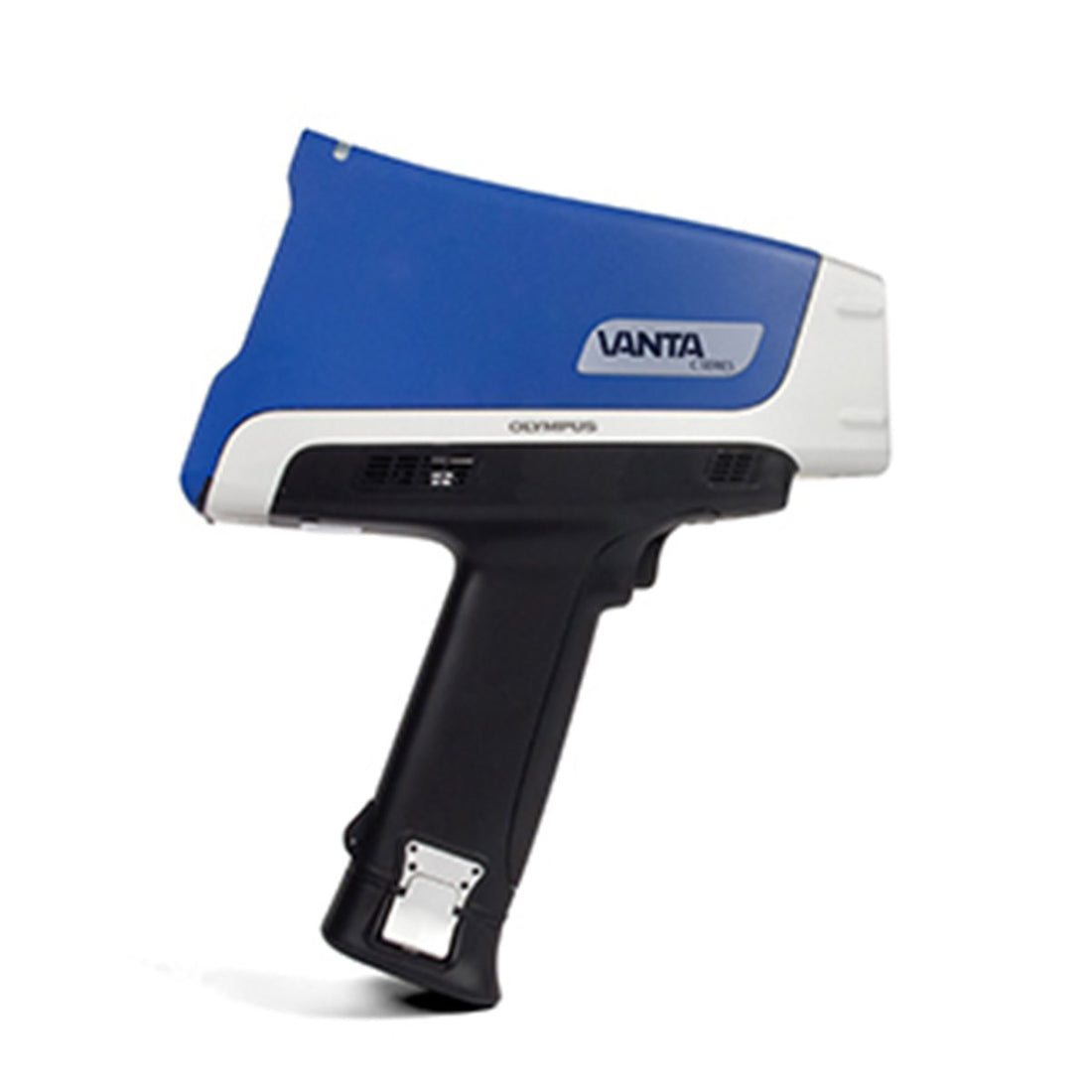

Olympus Vanta VCR Series Handheld XRF Analyzer
Olympus Vanta VCR Analyzer is our most advanced handheld X-ray fluorescence (XRF) device. These rugged, powerful, and intuitive instruments provide rapid, accurate element analysis and alloy identifications to customers who demand laboratory-quality results in the field.
Vanta handheld XRF analyzers are some of the toughest devices Olympus has ever made. Their rugged and durable design makes them resistant to damage for greater uptime and a lower cost of ownership. With intuitive navigation and configurable software, the Vanta series are easy to use with minimal training for high throughput and fast return on investment. Olympus™ innovative Axon technology means Vanta analyzers give you accurate results and help boost productivity no matter the environment or working conditions.
Features:
Exceptional durability under extreme conditions
Analytical excellence
Optional Wi-Fi and Bluetooth® for real-time data sharing
Intuitive user interface
Applications:
Scrap Sorting
Positive Material Identification (PMI) and Manufacturing Quality Control/Assurance
Regulatory and Safety Screening
Environmental Assessments
| Technical | The C Series combine value with superior speed limits of detection (LODs) and elemental range. Each C Series analyzer is equipped with a silicon drift detector and your choice of an Rh or W anode 40 kV X-ray tube or a silver (Ag) anode at 50 kV X-ray tube |
| Excitation Source | 4-Watt X-ray tube with application optimized anode material (rhodium (Rh) silver (Ag) or tungsten (W)) C Series (Rh & W): 8-40 kV |
| Display | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control |
| Operating Environment Temperature | -10 °C to 50 °C (continuous duty cycle with optional fan) Humidity: 10% to 90% relative humidity non-condensing |
| Operating System Linux | Cloud enabled with user fleet manager capability |
| IP Rating and Detector Shutter | C and L Series IP65: dust tight and protected against water jets from all directions Solid detector shutter to help prevent detector damage |
| Data Storage | microSD slot with included 1 GB Industrial SD card |
| USB | (2) USB 2.0 type A host ports for accessories such as wireless LAN Bluetooth® and USB flash drives. (1) USB 2.0 type mini-B port for connection to computer |
| WiFi | WiFi Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor Bluetooth Supports Bluetooth® via optional USB adaptor |
| Camera | Aiming Camera Full VGA CMOS camera Panoramic Camera 5-megapixel CMOS camera with autofocus lens |
| Dimensions | US: 3.25 × 11.4 × 9.5 in. Metric: 8.3 × 28.9 × 24.2 cm |
| Weight | US: 3.75 lb. Metric: 1.70 kg |
