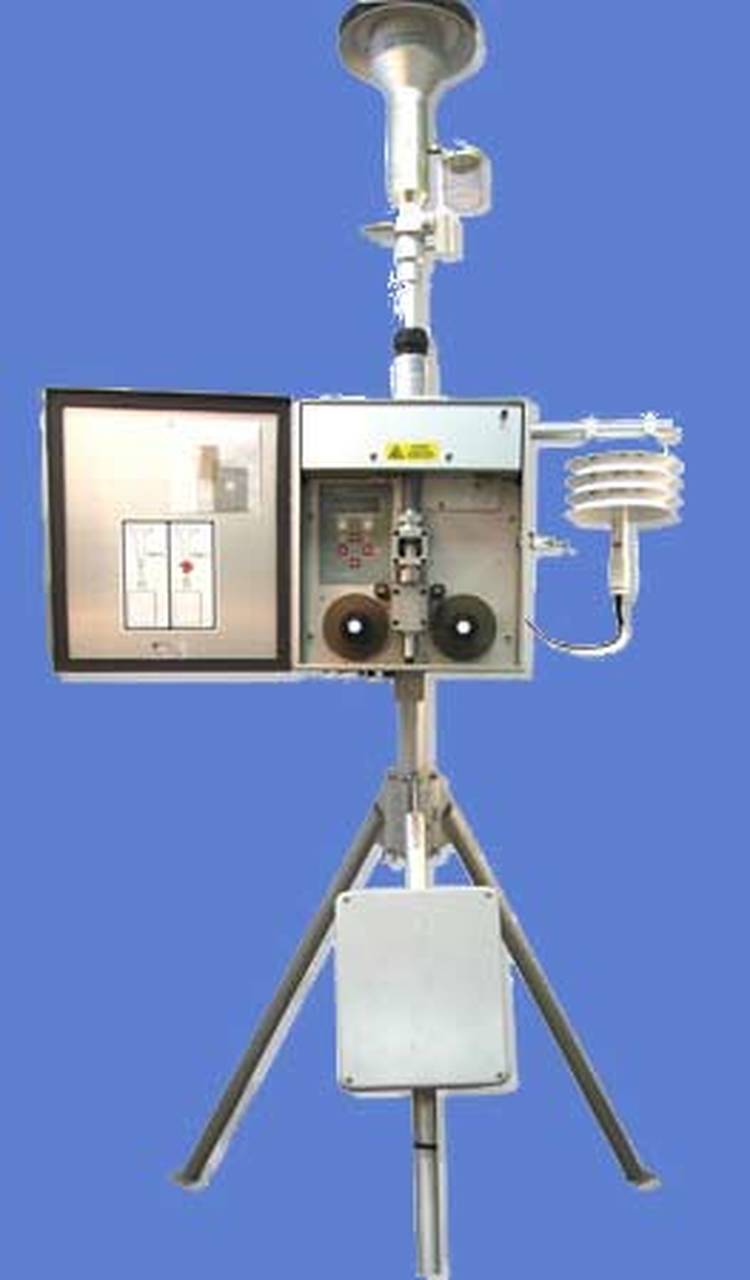

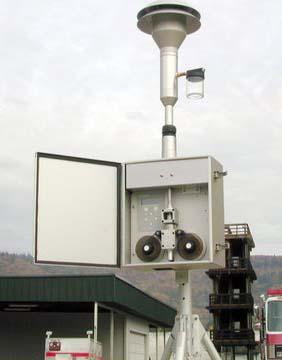

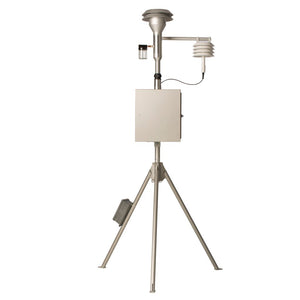

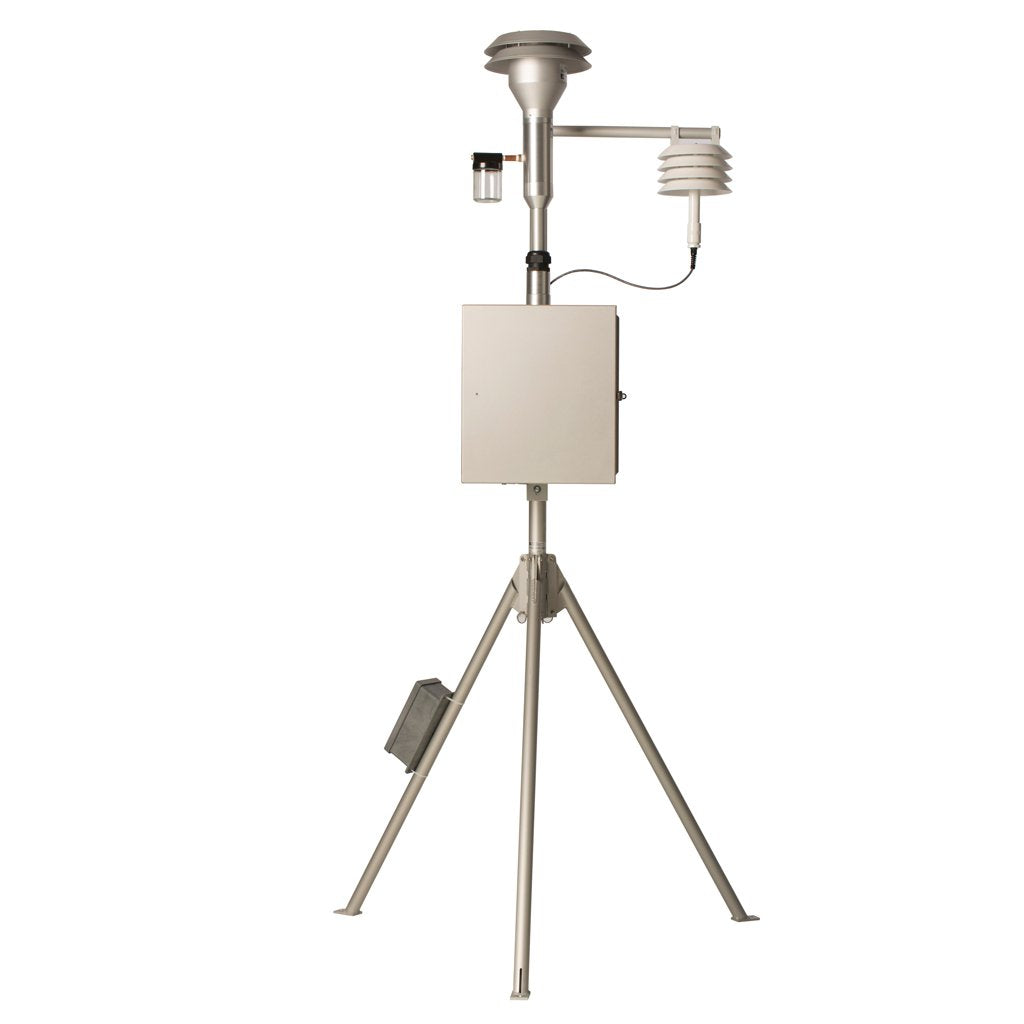

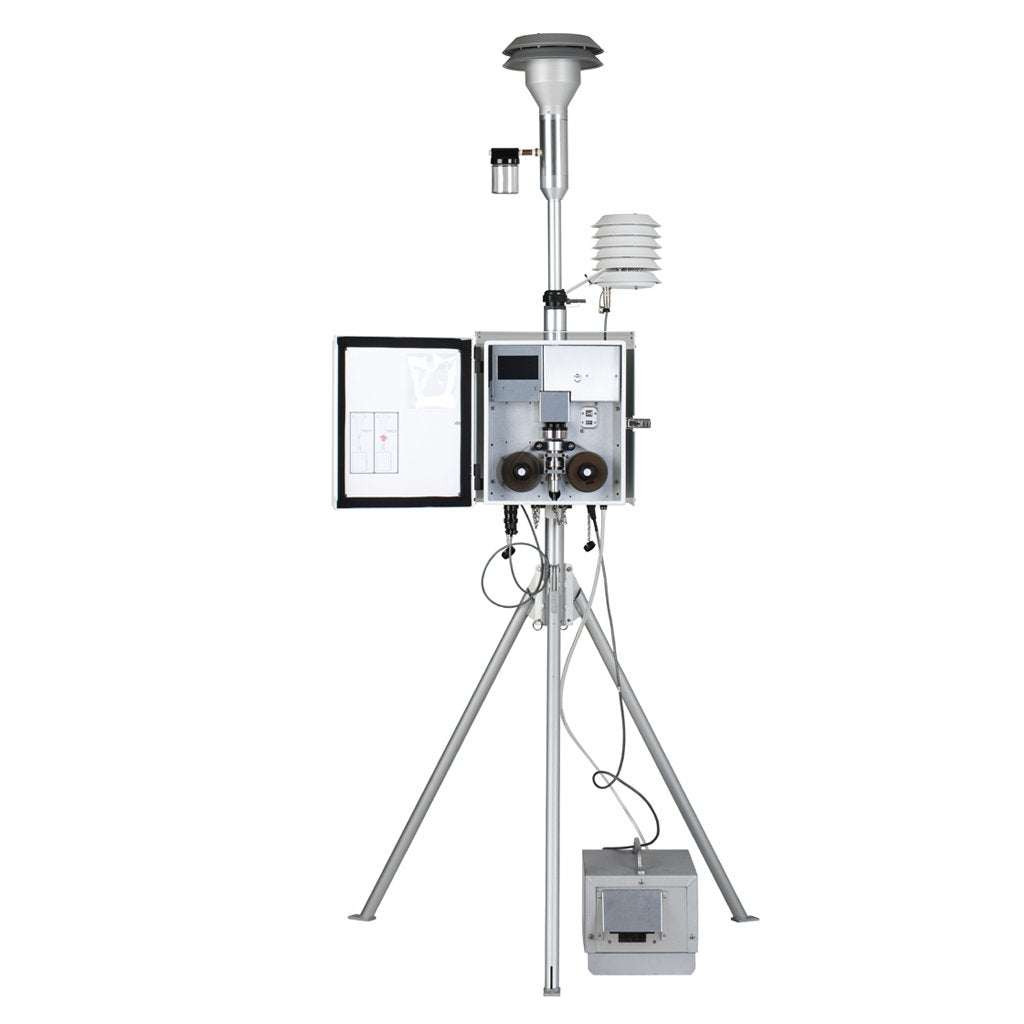

Met One E-Bam Mass Monitor
The Met One E-Bam is a portable, real-time beta gauge which is comparable to U.S. EPA methods for PM 2.5 and PM 10 particulate measurements. The Met One E-Bam has been built to satisfy users, regulators and those from the health community by providing truly accurate, precise, real time measurement of the particulate matter automatically. In addition, it is rugged, portable, battery operated, and deployable in 15 minutes.
Features:
Operates on AC or DC power. Battery and Solar options available upon request.
Accuracy and precision consistent with U.S. EPA requirements for Class III PM2.5 and PM10 measurement
Lightweight rugged construction allows for true ambient sampling.
Real-Time accurate results without correction factors regardless of season or geographic location.
True ambient sampling provides accurate measurement of semi-volatile nitrates and organic compounds.
Applications:
Ambient Monitoring
Compliance Test
Emission Sampling
Environmental Surveys
Fenceline Monitoring
Technical Specifications
| Range | 0 - 65 mg per cubic meter |
| Accuracy | 2.5 microgram or 10% in 24 hour period |
| Measurement Cycle | Hourly measurements with 1 5 10 15 or 30 min real-time averages |
| Detector | Scintillation Probe |
| Analog Output | 0-1V 0-2.5v 0-5V selectable hourly or real-time output |
| Inlet | Compatible with EPA PM10 and PM2.5 inlets |
| Flow Rate | 16.7 liters per minute adjustable |
| Dimensions | US: 16.1 x 14.1 x 7.9 in. Metric: 41 x 36 x 20 cm |
| Weight | US: 28.7 lb. Metric: 13 kg |
