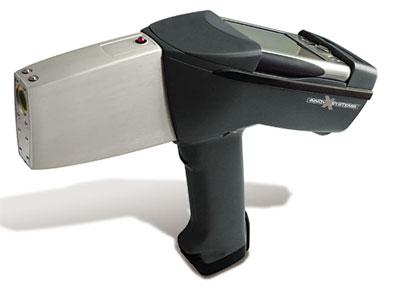

Innov-X 600 Alpha Series XRF Analyzer
Pine Item #54308
Capable of undertaking a variety of both industrial and environmental monitoring applications, the Innov-X Alpha PMI Analyzer is an X-Ray Fluorescence Analyzer (XRF) combined with a HP iPAQ mini PC. Utilising a rugged X-Ray tube rather than radioactive isotopes, the Innov-X Alpha uses the iPAQ library to determine alloy chemistry and grade ID in metals, metal concentrations and type in soils as well as testing components for both RoHS and WEEE directives.
Providing instant, accurate readings, this hand-held analyzer reduces costly laboratory testing and allows quicker testing.
Features:
Analyze low alloy stainless nickel titanium cobalt copper-based alloys and more.
Confidently separate challenging alloys such as 304 & 321 P91 & 9 Cr Ti Grade 7 & CP Ti.
Designed for tests to 800?F.
Exceptional performance on 6061/6063 aluminum alloy seperations.
Measure Cr in carbon steel to 0.03% -- for evaluating flow accelerated corrosion (FAC).
Applications:
Analyze low alloy stainless nickel titanium cobalt copper-based alloys and more.
Confidently separate challenging alloys such as 304 & 321 P91 & 9 Cr Ti Grade 7 & CP Ti.
Designed for tests to 800?F.
Exceptional performance on 6061/6063 aluminum alloy seperations.
Measure Cr in carbon steel to 0.03% -- for evaluating flow accelerated corrosion (FAC).
Equipment available for both rental and purchase
Request a Quote
Specifications
"""
| Excitation Source | X-ray tube Ag or W anode 10-40 kV 10-50 µA up to 5 filter positions. |
| Smart Beam | Delivers industry-leading detection limits on critical elements Cr V Ti. |
| Detector | Si PiN diode detector <230 eV FWHM at 5.95 keV Mn K-alpha line. |
| Number of Elements | Standard package includes 21 elements. Customer may specify 4 additonal or use multiple suites of 25 elements each. |
| Operation | Trigger or Start/Stop Icon. One-touch trigger or \deadman\""" trigger option. Optional control from external PC. |
| Memory Data Storage | 128 Mb standard memory. 20000 test results with spectra upgrade to >100000 with optional 1 Gb flash card |
| Display Screen | Color high resolution touchscreen. Variable brightness provides easy veiwing in all ambient lighting conditions. |
| Power | Li-ion batteries rechargeable (charger included). Powers analyzer and iPAQ simultaneously. AC Adapter optional. |
Dimension
| US | Metric |
Weight
| US | Metric | |
| Weight | 3.375 lbs | 1.6 kg |
