iShot XtendaCam Pole Camera Systems
Pine Item #52173

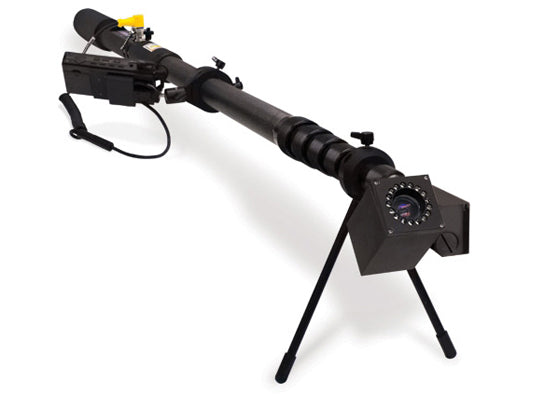

Quickly access and inspect out-of-reach targets up to 20-feet away with the iShot Imaging XtendaCam® Manual Tilt Video Pole Inspection System. The XtendaCam® is designed specifically for viewing, illuminating, and recording inaccessible areas in a matter of minutes. The system boasts a 1/4-inch CCD zoom camera in a waterproof housing attached to a manual tilting mechanism allowing the user to change the vertical orientation of the camera in a 320-degree range. The camera system offers a crisp video output: 40 to 1 zoom ratio, auto-focus, variable shutter, gain, exposure, white balance, and backlight compensation. An LED light ring provides auxiliary lighting that reaches targets up to 25-feet away. The camera functions and lighting are controlled via a touch pad on the XtendaCam® body.
Features:
Submersible camera head, IP-67 rating - up to 1 meter
40x zoom ratio (10x optical, 4x digital)
Variable intensity LED lighting reaching up to 25 feet
Pole mounted LCD monitor and recorder
Capture video or image stills
Easy to use camera control pad on pole, splashproof
Rugged Pole colapses to 5 feet
Extend camera on telescoping pole up to 16 feet, 4 inches
Completely mobile system, includes shipping case
Applications:
Bridge Structure Inspections
Transportation inspections
Security/Surveillance
Law Enforcement/Military
Mines
Refineries
Power Generation Facilities
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals & Data Sheets
| Technical Specifications | |
|---|---|
| Image Device | |
| Digital Zoom | |
| Minimum Object Distance | 10 mm (wide) to 1000 mm (tele) |
| White Balance | Auto, ATW, Indoor, Outdoor, One-push, Manual |
| Backlight Compensation | On/Off |
| Signal System | NTSC |
| Optical Zoom | 10x |
| Sync System | Internal |
| Gain | Auto/Manual (-3 to 28 dB 2 steps) |
| Focus System | Auto (Sensitivity: normal and low), One-Push AF, Manual, Infinity, Interval AF, Zoom Trigger AF |
| Picture Effects | Nega Art, Black & White, Mirror Image |
| Video Output | VBS: 1.0 Vp-p (sync negative), Y/C |
| Dimensions | 1 9/16 x 1 13/16 x 2 5/8 inches, (39.3 x 44.8 x 65 mm) |
| Weight | 3.4 oz (95g) |
| Effective Pixels | Approx. 380,000 |
