SKC

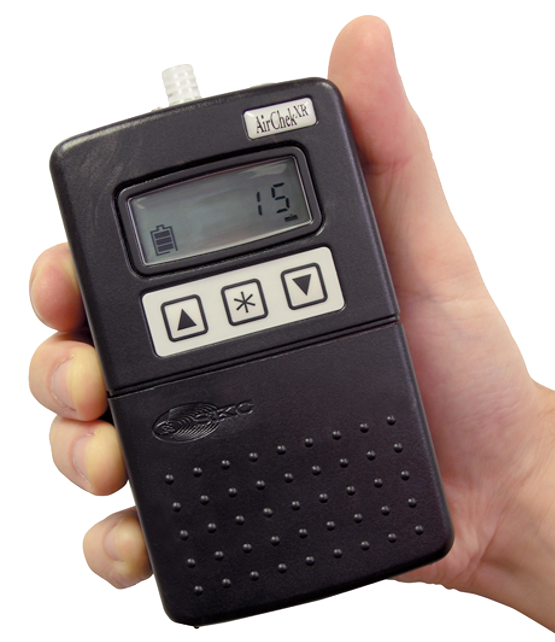

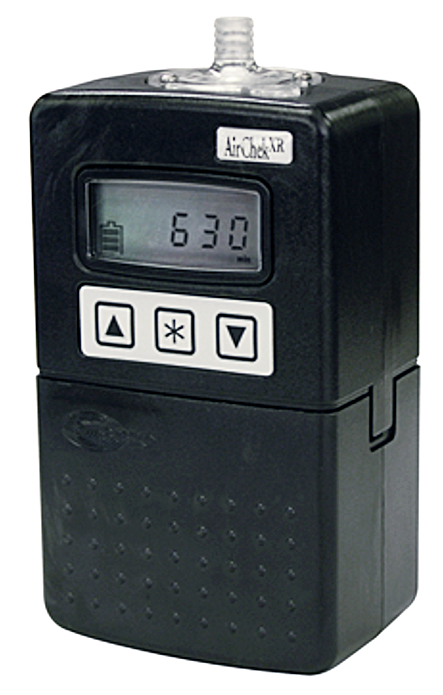

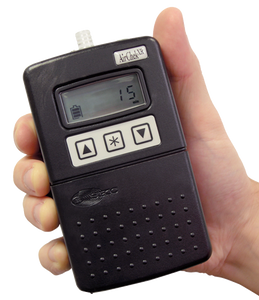

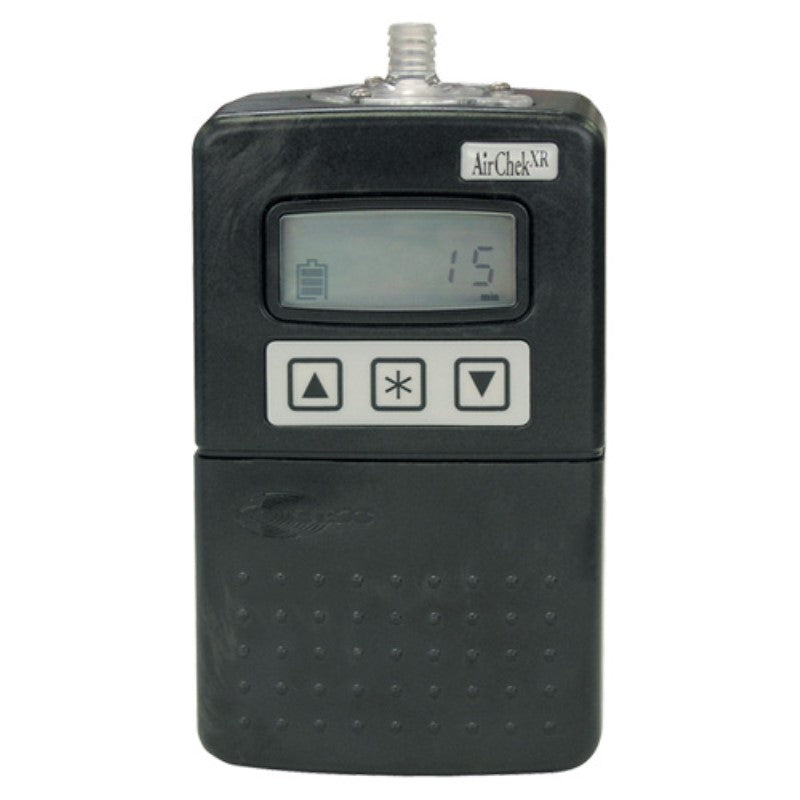

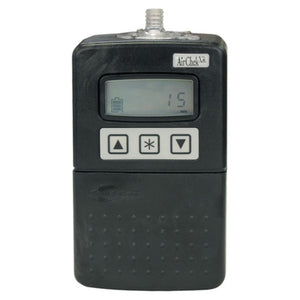

AirCheck XR5000 Sample Pump, Hi-power Li-Ion
Pine Item #61263

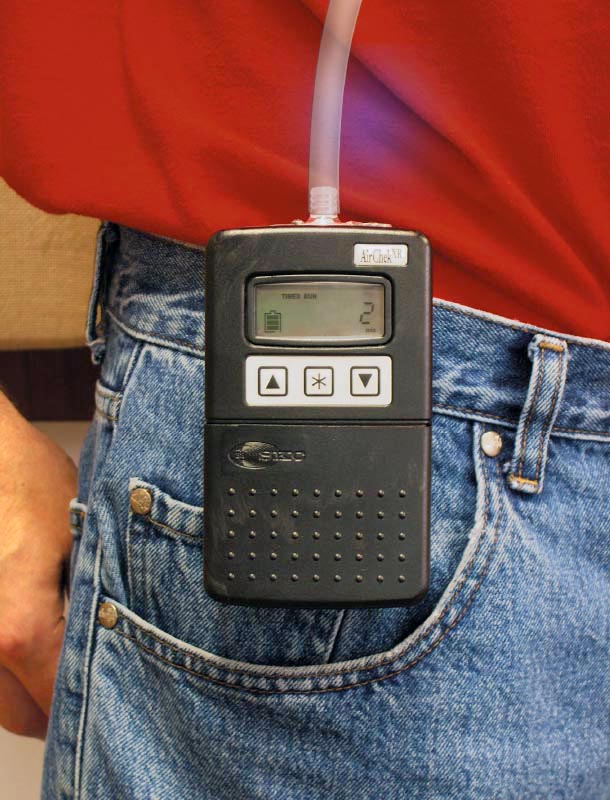

Discover the perfect combination of features and power in this compact, lightweight pump that gets the job done. The AirChek® XR5000 personal air sampling pump with Li-Ion battery provides powerful flows for particulate sampling, low flows for gas and vapor sampling, and the long run-times for low-concentration sampling.
The AirChek XR5000 air sampling pump is UL Listed for intrinsic safety.
Features:
Extended flow range: 5 to 5000 ml/min
Enhanced battery power for extended run times
Extremely simple to use
Automatic features for sample integrity
Applications:
Dust sampling
Vapour/gas sampling
Combined dust/vapour sampling
Air safety sampling is relevant to almost every industry, from flour dust exposure in a bakery to chemical vapour exposure in a factory
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals & Data Sheets
| Flow Range | 1000 to 5000 ml/min (5 to 500 ml/min requires optional low flow kit) |
| Compensation Range | 5000 ml/min at 10 inches water back pressure |
| 4000 ml/min at 20 inches water back pressure | |
| 2000 ml/min at 50 inches water back pressure | |
| Flow Compensation System | Isothermal closed loop flow sensor |
| Tubing | Requires 1/4-inch ID tubing |
| Accuracies | Timing: 1 min/mo at 25 C |
| Flow Rate: ± 5% of set-point after calibration to desired flow | |
| Low Battery Fault | 15 sec to sleep |
| Auto-off | 5 min of inactivity |
| Size | High-power Li-Ion model: 5.5 x 3 x 2.3 in (14 x 7.6 x 5.8 cm) |
| Standard Li-Ion model: 4.3 x 3 x 2.3 in (10.9 x 7.6 x 5.8 cm) | |
| Weight | High-power Li-Ion model: 21 oz (0.6 kg) |
| Standard Li-Ion model: 16 oz (0.45 kg) | |
| Case | Anti-static plastic |
| Weight | High-power Li-Ion model: 21 oz (0.6 kg) |
