Solinst
3001 DataGrabber 5 Mk2
Pine Item #22094

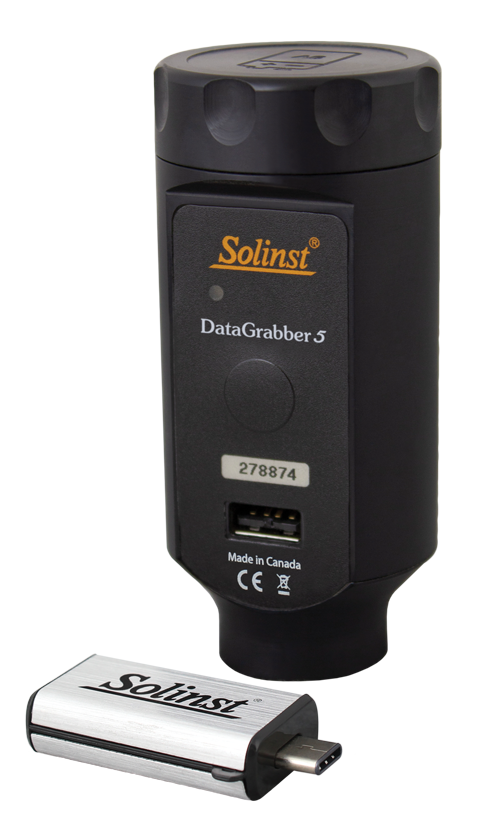

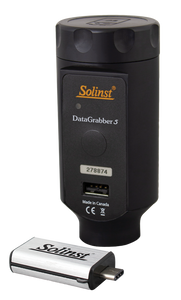

The DataGrabber 5 is a very convenient device for downloading data from Solinst dataloggers in the field. The DataGrabber 5 copies data to a USB flash drive.

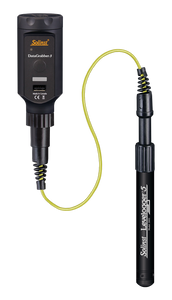

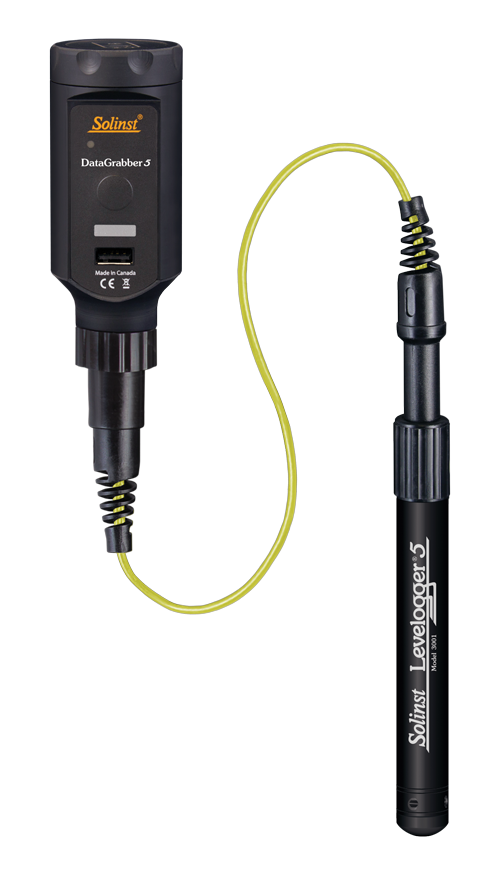

The DataGrabber 5 is compact – designed to fit in your pocket. It uses one 9V replaceable battery. It connects to the top end of a Levelogger's Direct Read Cable, directly to a Levelogger using an Adaptor, or to LevelVent or AquaVent Wellhead.
To operate, connect your datalogger, insert the USB device, and press the push-button. All of the data in the connected datalogger is transferred to the USB device. The transfer does not interrupt a running datalogger, and the data in memory is not erased. A light indicates the DataGrabber's functions.
The DataGrabber 5 is compact – designed to fit in your pocket. It uses one 9V replaceable battery. It connects to the top end of a Levelogger's Direct Read Cable, directly to a Levelogger using an Adaptor, or to LevelVent or AquaVent Wellhead.
To operate, connect your datalogger, insert the USB device, and press the push-button. All of the data in the connected datalogger is transferred to the USB device. The transfer does not interrupt a running datalogger, and the data in memory is not erased. A light indicates the DataGrabber's functions.
Features:
One push-button to download data
Inexpensive and easy to transport
Compatible with most USB flash drive keys, including USB 3.0
Connects to a Levelogger’s L5 Direct Read Cable/
Adaptor or LevelVent/AquaVent 5 Wellhead
Uses separate, replaceable 9V battery
LED light to indicate operation
Data transfer does not interrupt running datalogger
Equipment available for purchase
Request a Quote
Specifications
Manuals & Data Sheets
Specifications
| Materials: | ABS black, 316 stainless steel |
| Operating Temperature: | -20ºC to +50ºC |
| IP Rating: | IP64 (dust and splash resistant) |
| Battery: | 9V replaceable alkaline or lithium battery |
| Battery Life: | Up to 60 full datalogger downloads @21ºC (alkaline) |
| Size: | ø 45.7 mm x 99.3 mm (ø 1.80" x 3.91") |
| Weight: | 5.79 oz. (180 grams) |
| Size: | 22 mm x 160 mm (7/8”x 6.3”) |
| Weight: | 44 grams (1.6 oz) |
| Compatible With: | Levelogger 5 Series dataloggers, LevelVent 5 and AquaVent 5, as well as Levelogger Edge and Gold Series dataloggers, LevelVent and AquaVent. |
